Medium temperature wax silica sol precision casting (stainless steel stirrer for chef machine) specification sheet |
Specification items | Specific parameters |

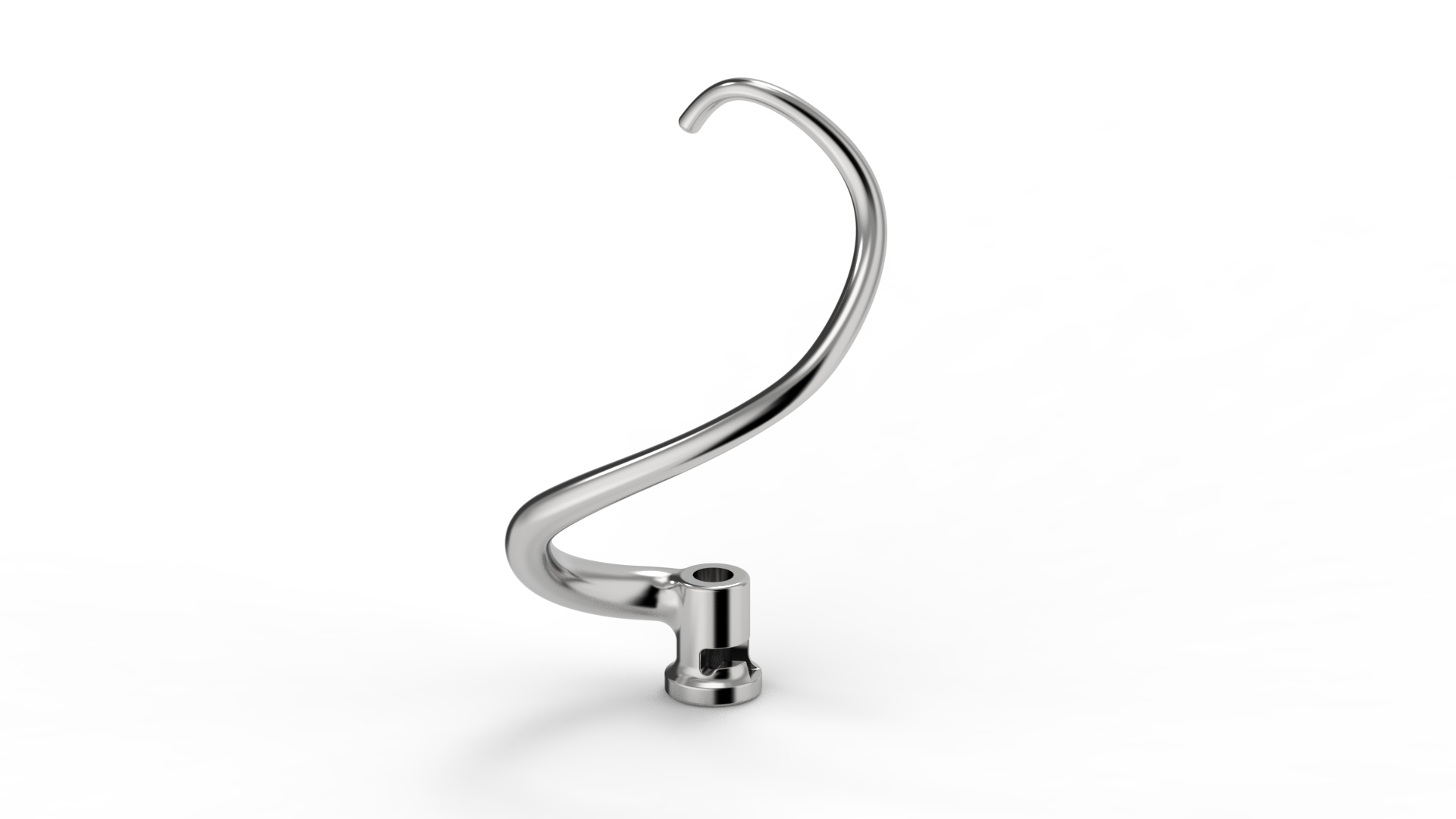

Product category | Dough hook and mixing paddle for chef machine, mixing accessories for household/commercial chef machine |
Main body casting material | Food grade 304 stainless steel, medium temperature wax silica sol lost wax integrated precision casting, food contact compliance |
Product single piece size range | Regularly adapted to 5L~10L chef machines, single piece dimensions <300mm |
Single piece weight range | 120g~450g per piece |
Processing accuracy | The casting dimensional accuracy can reach 0.03mm, and the assembly shaft hole is controlled at the micron level to accurately match the kitchen machine rotating shaft. |
Process characteristics | One-piece weldless casting, curved surface special-shaped structure, thin-walled one-piece molding (wall thickness ≥ 2mm); finished product mirror polished, surface roughness Ra1.6~Ra3.2μm, better than conventional Ra6.3μm process standard |
Supporting materials | No additional accessories, the entire piece is made of 304 stainless steel; no auxiliary parts such as silicone, filters, etc. |
Customized instructions | Available in stock for mass production, specifications can be changed according to drawings, and custom production of 316 stainless steel/duplex stainless steel materials can be upgraded as needed. |
